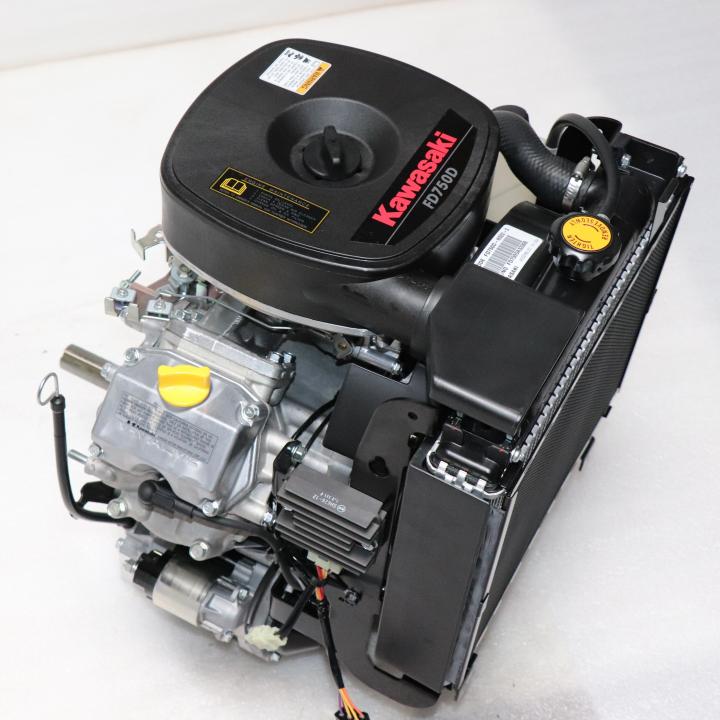

New FD750D Kawasaki engine without the muffler. Includes Radiator 1-1/8 PTO Shaft Full Charging system Electric Start Fuel Pump NO Muffler GENERAL INFORMATION Engine Specifications: Model FD750D Type: 4-stroke, OHV, V-twin 90° Crankshaft: 1.125 in. Displacement: 745 cm 3 (45.46 cu-in) Max. horsepower: 27.3 PS (20.1 KW; 27.0 HP) at 3,600 rpm Max. torque: (crank PTO) 58.3 Nm (5.95 kg·m; 43.03 ft·lb) at 2,400 rpm Carburetor: Float type carburetor with fixed main jet Cooling system: Liquid-cooling Ignition system: Transistorized ignition Lubricating system: Pressurized lubrication system Starting system: Electric starter Charging system: 12 Volt – 20A or 30A with regulator Fuel used: Unleaded gasoline (octane number 86 or higher) Fuel consumption: 230 g/HPh Cooling system: Pressurized forced circulation type DIMENSIONS AND WEIGHT Kawasaki FD750D Length, mm (in) 520 (20.5) Width, mm (in) 458 (18.0) Height, mm (in) 580 (22.8) Dry weight, kg (lb) 57.0 (125.7) MAINTENANCE DATA Engine Maximum speed: 3500 ± 100 rpm Idle speed: 1500 ± 100 rpm Cylinder compression: 7.5 kg/cm2 (107 psi) at 500 rpm Valve clearance: Intake valve 0.15 mm (0.006 in) Exhaust valve: 0.15 mm (0.006 in) Oil system: Oil type 4-stroke or an equivalent (SC, SD, SE, SF, SG, or SH) Recommended oil: SAE 10W-40, 10W-30, 5W-20 Oil capacity: (with filter changed) 1.8-2.0 L (1.9-2.1 US qt) Ignition system: Spark plug NGK: BPR2ES Spark plug gap: 0.75 mm (0.03 in) Spark plug tightening torque: 25 Nm; 2.5 kg·m; 18.5 ft·lb Ignition coil air gap: 0.25-0.40 mm (0.009-0.015)
